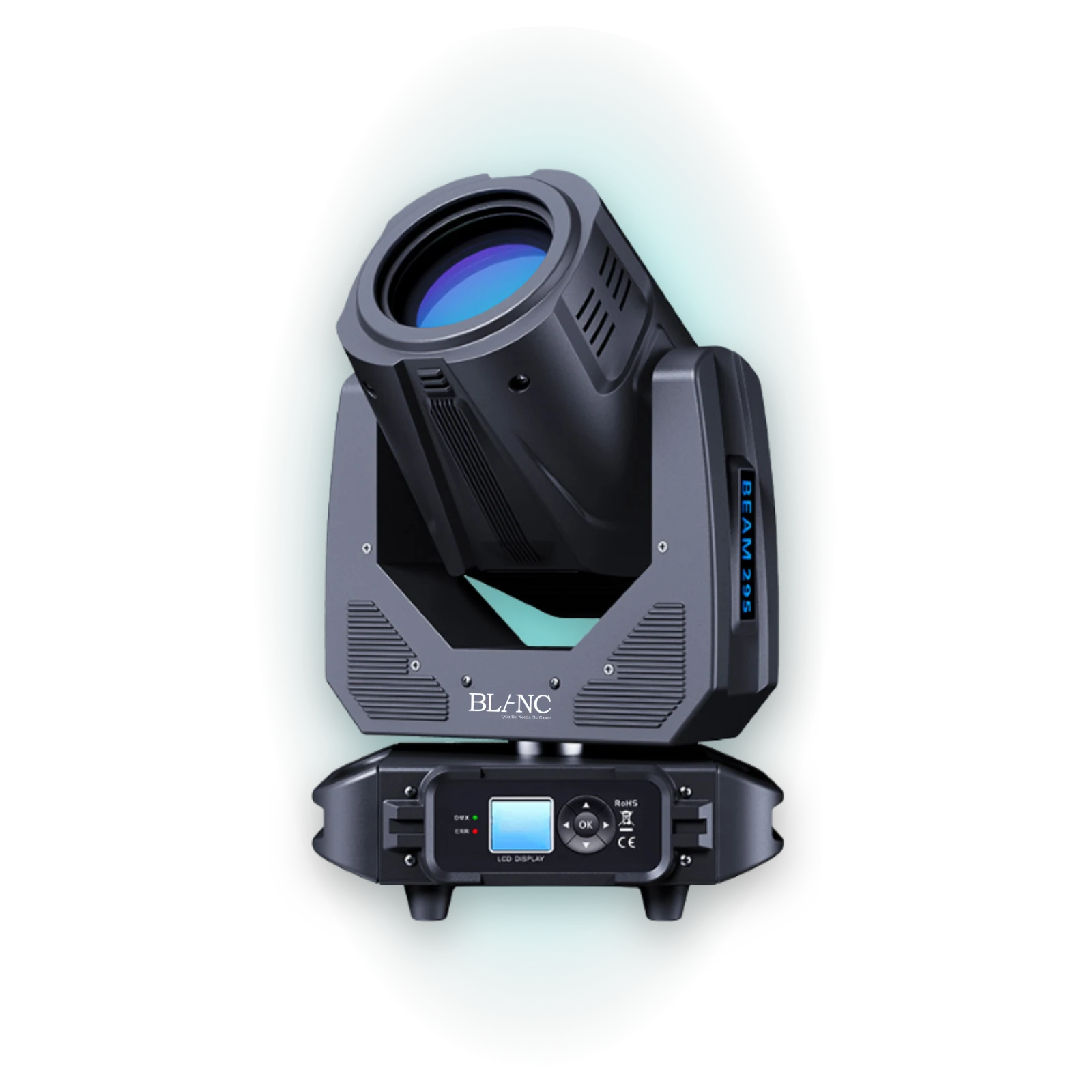

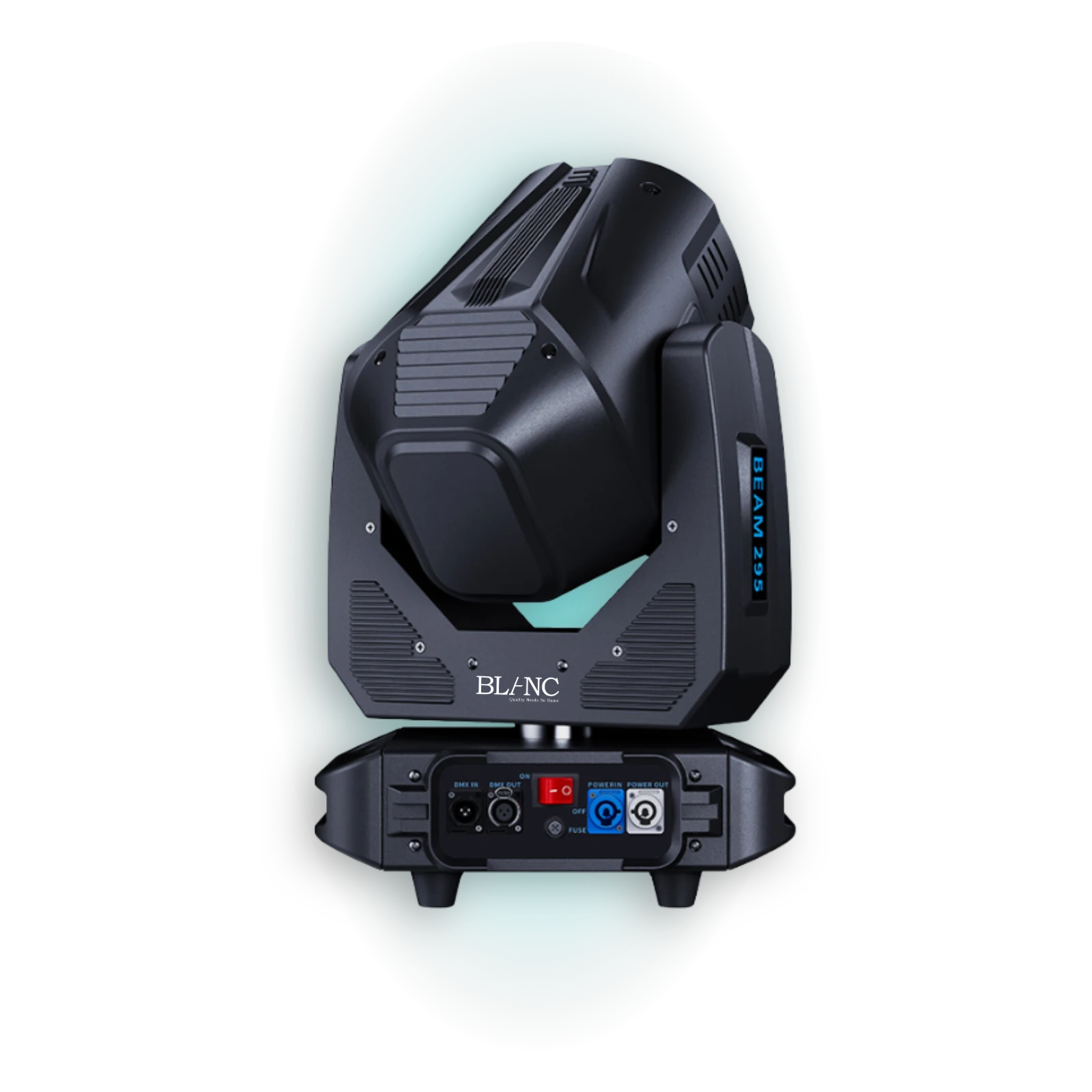

TLX295A

295W Beam Moving Head Light

Features

  • 295W discharge lamp with high-intensity beam output
  • Wide 8°–54° zoom range for flexible coverage
  • 14-color wheel with multi-color effects
  • 18 gobo patterns with dynamic effects
  • Dual prism system with rotation effects
  • Smooth dimming and strobe control
  • Wide pan/tilt movement for dynamic positioning

Download Datasheet (.Pdf, 768kb)

The BLANC TLX295A is a high-output beam moving head built for impactful visual performance in large-scale productions. Designed for speed, precision, and dynamic movement, it delivers strong beam effects with consistent output. Its advanced control capabilities and robust construction make it well-suited for demanding environments where visual presence and reliability are essential.

Lighting System

Light Source

Phoenix 13R 295W discharge lamp

Color Temperature

12000K

Luminous Output

90,000 lumens

Fixed Luminous Output

46,500 lumens

Maximum Intensity

3,000,000 cd

Lamp Life

10,000 hours

Optics & Effects

Optics

145mm lens diameter

Zoom Range

8° – 54°

Color Wheel

14 colors + open / half color

Gobo Wheel

18 gobos + open (with effects)

Prism

16-facet + dual prism (bi-directional rotation)

Focus

Multi-layer optical focusing system

Dimmer

0–100% linear dimming

Strobe

Variable strobe (0–15t/s)

Movement

Pan

540°

Tilt

270°

Control & Interface

Control Mode

DMX512 / Master-Slave / Sound / Auto / RDM

Channel Mode

16CH / 22CH

Dimming

Linear dimming

Shutter

Variable strobe / shutter effects

Connectivity

DMX Input / Output

3-pin XLR

Power Input

PowerCON / IEC

General

Power Supply

AC 100–240V, 50/60Hz

Power Consumption

550W

Cooling System

Active cooling

Mounting

Hanging bracket

Dimensions

33 × 26 × 52 cm

Weight

14.3 kg

  • Concerts and live shows
  • Church productions and special events
  • Stage and touring setups
  • Event lighting design
