PTZ-HDN

FHD PTZ Camera

Features

  • Full HD 1080p60 video output
  • Multiple optical zoom options (12x / 20x / 30x)
  • Multi-interface output (HDMI, USB3.0, LAN, 3G-SDI)
  • AI tracking with auto framing
  • Low-light performance with noise reduction
  • Multiple streaming and control protocols supported
  • Flexible installation (desktop, wall, ceiling)

Download Datasheet (.pdf, 533kb)

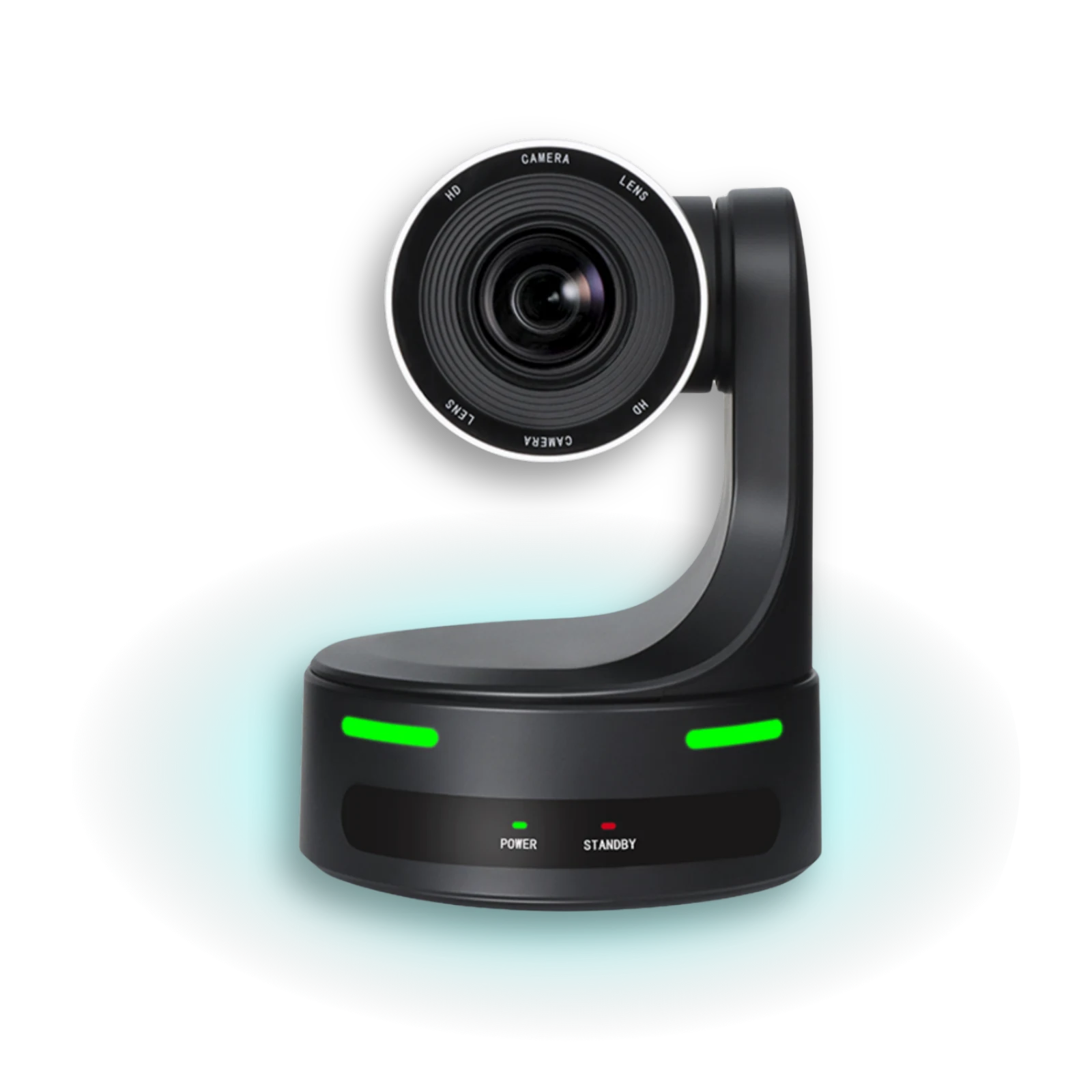

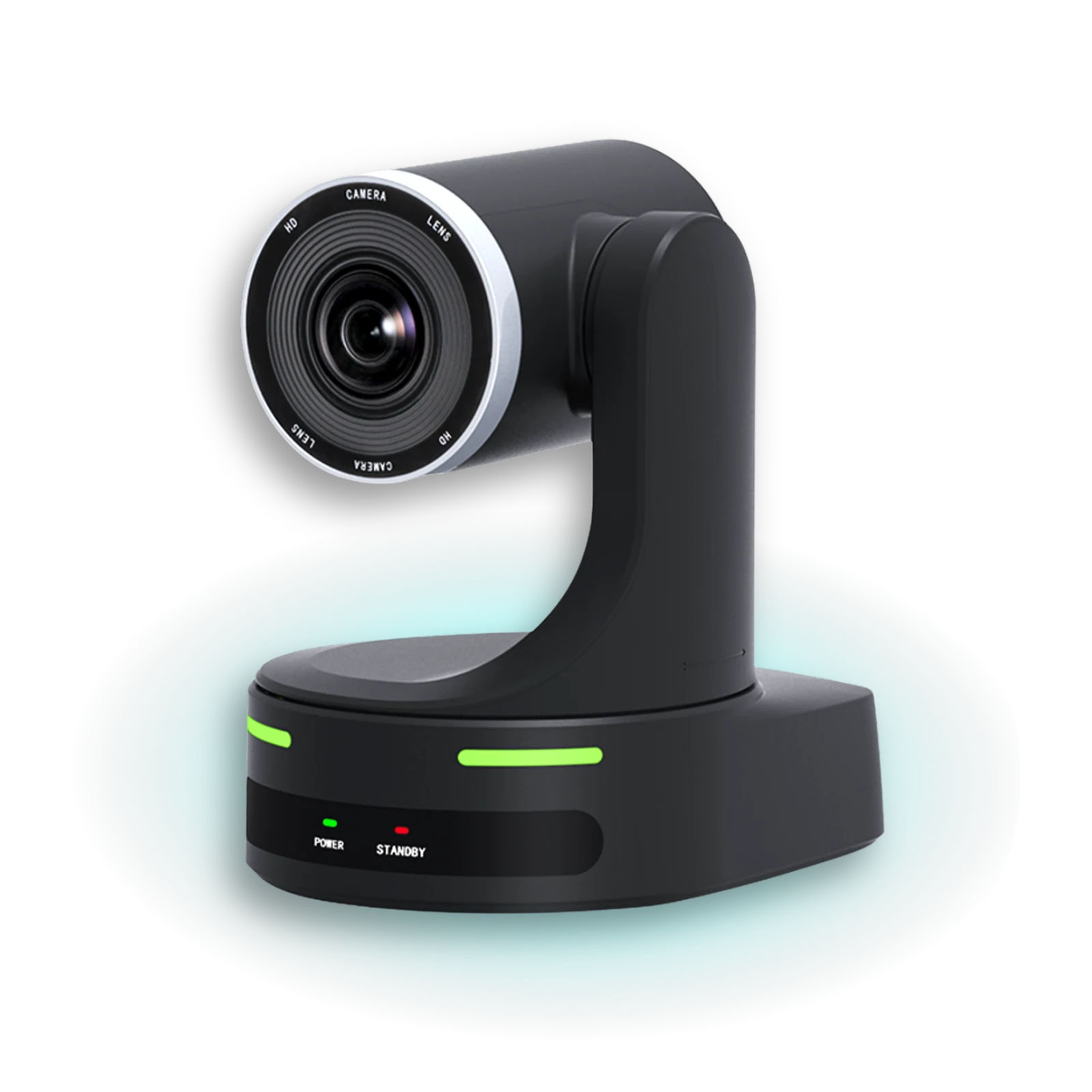

The BLANC PTZ-HDN is a Full HD PTZ camera designed to deliver stable and reliable video performance for live production and installed AV systems. With flexible connectivity and intelligent tracking capabilities, it supports efficient operation with minimal manual control. Its balanced performance and adaptability make it well-suited for a wide range of video applications.

Image & Optics

Sensor

SONY 1/2.8″ CMOS

Resolution

Up to 1080p60

Optical Zoom

12x / 20x / 30x

Digital Zoom

16x

Minimum Illumination

0.1 Lux

Signal-to-Noise Ratio

≥50dB

Video Output

HDMI

Up to 1080p60

3G-SDI

Up to 1080p60

USB

Up to 1080p

LAN Streaming

H.264 / H.265

Control & Protocols

Protocols

VISCA, Pelco-D/P, ONVIF, RTSP, RTMP, SRT

Network

TCP/IP, HTTP, DHCP

AI Functions

Auto framing, tracking

Pan / Tilt

Pan Range

355°

Tilt Range

-30° to +90°

Presets

YUY2, MJPEG

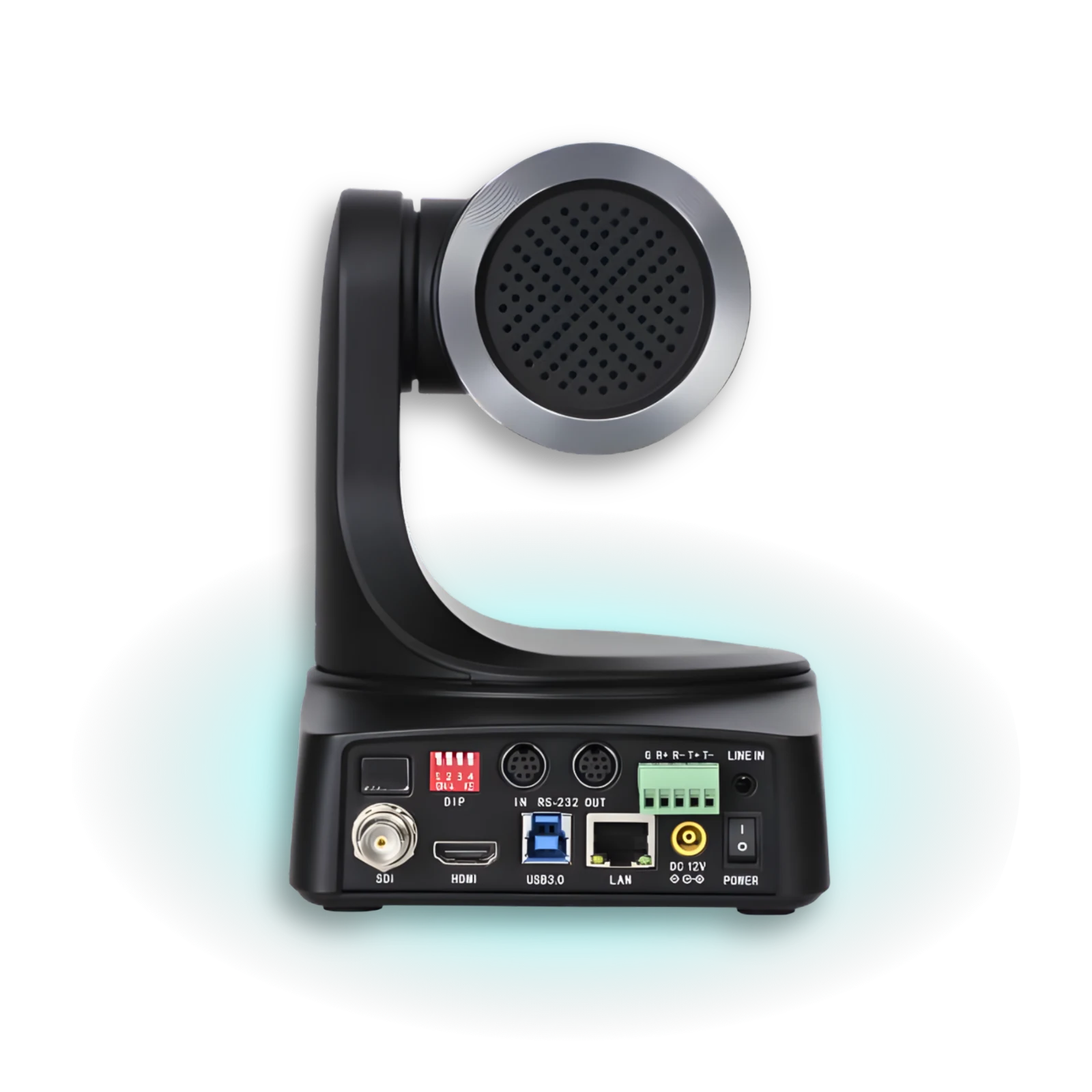

Interface

Video Interfaces

HDMI 1.4, 3G-SDI, USB3.0

Network

RJ45

Audio Input

3.5mm

Control Ports

RS232 / RS422 / RS485

General

Power Supply

DC 12V

Power Consumption

≤18W

Dimensions

134 × 174 × 187 mm

Weight

1.2 kg

  • Church live streaming
  • Hybrid meetings and conferences
  • Education and training environments
  • Small-scale broadcast setups
